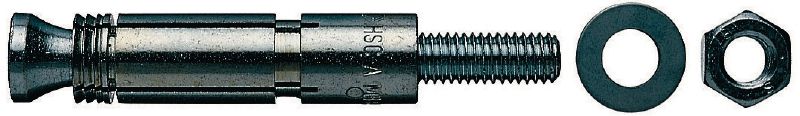

HSC-A Shallow undercut anchor
New productItem #r1205
Ultimate-performance shallow undercut anchor (carbon steel, external threaded)
- Material, corrosion: Carbon steel, zinc-plated
- Head configuration: Externally threaded
- Approvals / test reports: ETA, Fire, Seismic
Share
Features & Applications
Features & Applications
Features
- Shallow embedment depth for thin concrete slabs or where permissible drilling depth is limited
- Combines high working loads with small edge distances and close spacing thanks to very low expansion forces
- Self-undercutting facilitates fast and reliable installation – no separate undercutting tool or handling needed

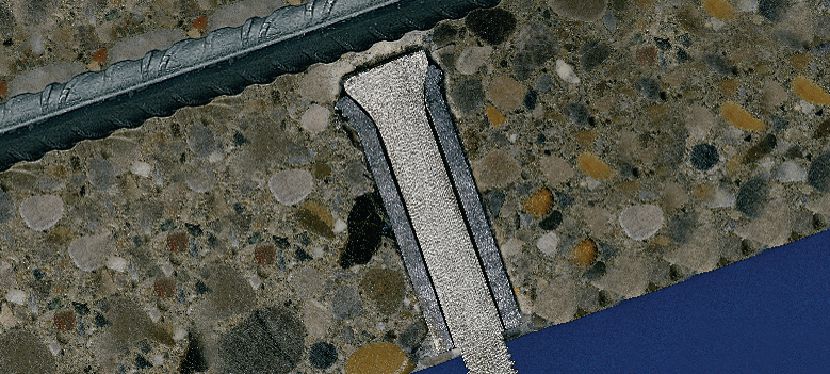

- The resulting keying effect keeps the anchor secure even in cracked concrete under shock loads
- Requires a plain cylindrical drilled hole, no separate undercutting operation
Applications
- Safety-relevant, medium-duty fastenings in cracked or uncracked concrete, especially where shallow embedment and/or small edge distance or close spacing is required

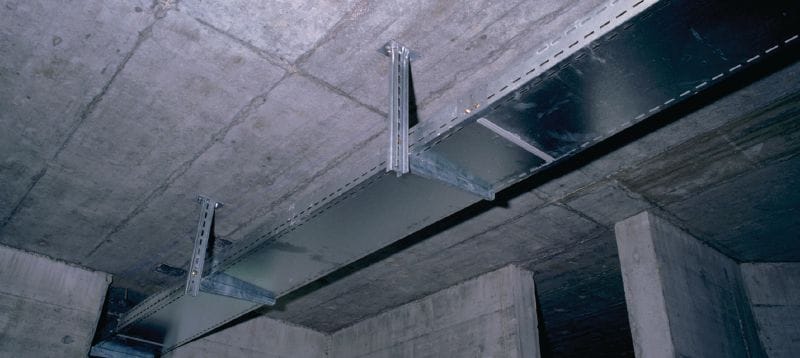

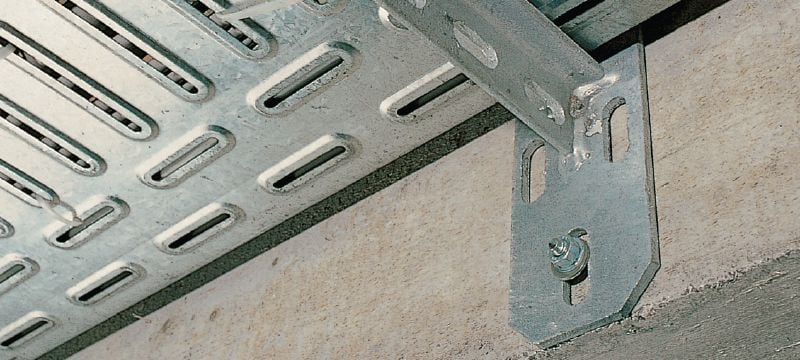

- Examples: stair hand rails, sprinkler pipes, air ducts, seating, facade substructures, car park barriers, etc.
For approval or certificate information, please see individual items.
